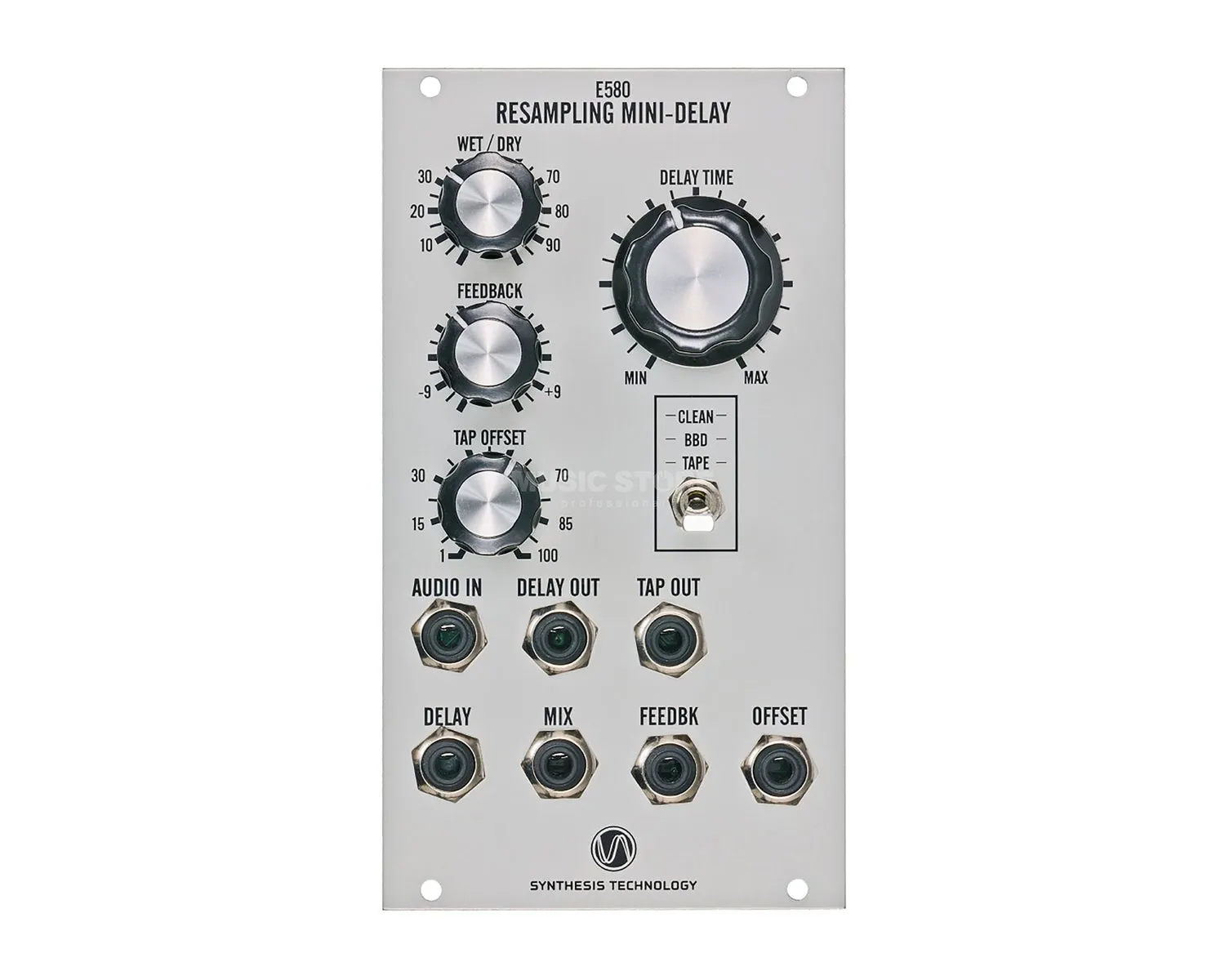

The Synthesis Technology E580 is a 14HP resampling mini delay that emulates the classic sounds of digital, BBD (bucket brigade), and tape-based delays with four parameters under voltage control.
The E580 accepts either /-12V standard power or /-15V MOTM/power.
Using a 40MHz DSP and 24-bit codec, the E580 recreates the pitch-shift modulation of BBDs, including the variable bandwidth and noise floor, without costly and scarce BBD ICs.
In Tape Mode, wow & flutter, tape saturation and non-linear distortions emulate classic tape units without the bulk and maintenance. There are two simultaneous audio outputs: a straight delay and a variable tapped delay. The tap position is a percentage of the main delay time. This allows very short delays (<350μs) as well as long delays (750ms). Both tap position offset and main delay time are voltage-controlled over a -5v to 5v range.
Feedback is jumper-selectable from either the tapped position or the main delay. This flexibility can generate standard rhythmic delays (feedback from main delay) or a series of pre-delay reflections (tapped delay) which sound very different from each other.
Video:
Product Specs
- Item Number: 17178
- Make:
- Model:
- Condition:
- Finish: Silver
- Categories: ⇒
- Function:
- Made In: United States
- MPN: E580
- Modular Grid: Eurorack
- Dimensions*: 14 HP 32 mm deep
- Power*: 90 mA 12V 20 mA -12V 0 mA 5V
* User contributed details
